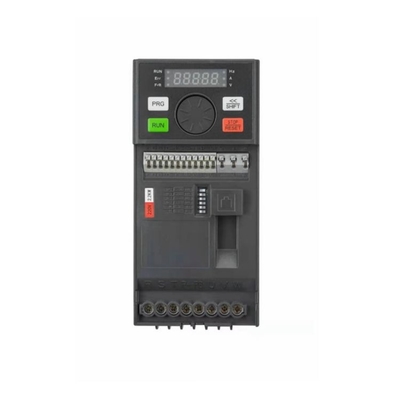

Name: High Quality Hybrid Solar Fountain Inverter 5 KW AC Output Three Phase Variable Frequency Drive AC Inverter VFD
Brand: High Quality Hybrid Solar Fountain Inverter 5 KW AC Output Three Phase Variable Frequency Drive AC Inverter VFD
SKU: PV1000-4T5.5kw, MPPT 99% efficiency
Rating: 4.6 (156 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: PV1000-4T5.5kw

Warranty: 3months-1year

Type: AC to AC

証明: CE, ISO9001 FCC, ROSH

Size: standard

Customized: Yes

Control Mode: MPPT 99% efficiency

Rated Power: 5.5KW

Nominal Voltage: 13A

power phase number: 3PHASE 380V

Rated power: 5.5KW

output current: 13A

MPPT EFFICIENCY: 99%

Output Type: 0-380VAC

input voltage: 250-800VDC

output frequency: 50/60HZ

Application: Fountain, machinery, textile industry, fan, machine tool

Product name: Solar Pump Inverter

Condition: 100%new 100%Original

CONTROL MODEL: MPPT 99% efficiency

基本情報

証明: CE, ISO9001 FCC, ROSH

Model Number: PV1000-4T5.5kw, MPPT 99% efficiency

お支払配送条件

Packaging Details: first in polybag, then in carton.

Supply Ability: 1000 Pack/Packs per Week

製品の説明

Product Description

Specification of Solar pump inverter specification when parameters H9.00 set to for 1.
Recommended MPPT voltage range	Vmp 260 to 355VDC for 2S ( For driving 220VAC pumps ) Vmp 486 to 650 VDC for 4T (For driving 380VAC pumps)
Recommended input Voc and Vmpp voltage	Voc 355(VDC), Vmpp 310(VDC) for 2S model or 220V AC pumps Voc 620(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps
Motor(pump) type	Control for permanent magnet synchronous motor (PMSM )and asynchronous motor pumps ( all type 3 phase induction motor)
Rated output voltage	3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V
Output frequency range	0~Maximum frequency 400Hz.
Efficiency	99.2 to 99.6%
Over load capacity	G type for submersible pumps, 150% rated current for 60s, 180% rated current for 3s P type for surface pump, 120% rated current for 60s, 150% rated current for 2s.
Solar pump control special performance	MPPT ( maximum power point tracking),auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected.
Protection function	Phase loss protection, phase short circuit protection, ground to phase circuit protection , input and output short circuit protection. Stall protection, lightning protection, over heat protection.
Protection degree	IP20, Air force cooling
Running mode	MPPT or CVT
Altitude	Below 1000m; above 1000m, derated 1% for every additional 100m.
Standard AC input backup circuit	CE, Design based on AD800 series high performance inverter, more specification please refer to AD800 series vector control inverter operation manual

Specification

type	AC to AC
certification	CE, ISO9001 FCC, ROSH
OEM/ODM	accept
Protection	20 kinds of motor protection
phase	3 phase
color	black
display	LED LCD
MOQ	1pcs

Company Profile

Packing & Delivery

FAQ

Q1. What is the difference between you and other suppliers? Compared with similar products in the current market, some of our products are more practical, more energy saving and more manpower saving. Q2. What services can you get from us? If necessary, we will guide you to install, debug, remind you of the matters needing attention during use, and the matters needing attention during later maintenance; Help you with pre-sale, in-sale and after-sales services. Q3.How about your product quality inspection? The product has passed five quality inspections before leaving the factory: component test, safety test, power test, aging test and load test. Ensure consistent and durable product quality. Q4.I need to know from you? the use scenario (what load? The approximate distance between the driver and the motor, the type of power supply (what is the voltage and frequency of three-phase electricity) or the high altitude area? Other requirements from customers (if possible),after obtaining complete information, we will select the drive model and reply to you. Q5. What terms of payment can we offer you? We accept telegraphic transfer, letter of credit, Western Union remittance, express remittance and Paypal. Q6.How long does the delivery take? Conventional quantity and model, generally 2-7 days. 10-15 working days for special requirements or large quantities of single models. Q7.Do you support oem business? Yes, we support OEM and ODM businesses. You can tell us your customized ideas. Q8.What value-added services can be provided? You can buy inverter system accessories, input and output wires and cables, tools needed for work, etc. from our company, hoping to save time and cost for you; You can also integrate a complete set of systems according to your requirements, debug the corresponding parameters for you, and reduce your technical requirements as much as possible.
