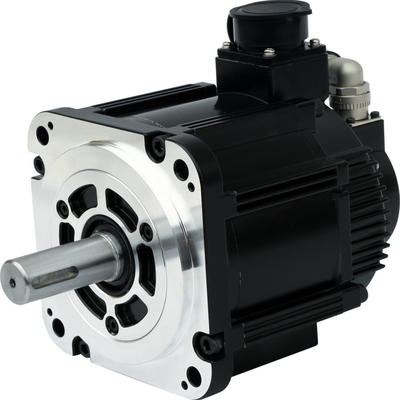

IP65 Customization CNC Lathe Machine Motor 220V 1.6KW 15.2N.m 1800rpm 130mm Ac Servo motor

1 piece
MOQ
IP65 Customization CNC Lathe Machine Motor 220V 1.6KW 15.2N.m 1800rpm 130mm Ac Servo motor
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 3months-1year
Model Number: 130SY-M15210S1
Type: SERVO MOTOR
Frequency: 50/60HZ
Phase: Three-phase
Protect Feature: IP65
AC Voltage: 208-230 / 240 V
Efficiency: IE 4
Product Name: 130MM servo motor
Rated Power: 1.6KW
Rated Voltage: 220V
Rated Speed: 1000rpm
Max. speed: 1800rpm
Rated current: 9.5A
Rated Torque: 15.2N.m
Max Torque:: 27.36N.m
Keywords: High Efficiency Servo Motor
Environment temperature: 0 °C - 55 °C
基本情報
Model Number: 130SY-M15210S1
お支払配送条件
Packaging Details: wooden box or carton for servo motor
Supply Ability: 10000 Set/Sets per Month
製品の説明
Customization CNC Lathe Machine Motor 220V 1.6KW 15.2N.m 1800rpm 130mm Ac Servo motor
Model
130SY-M05415S1
130SY-M08415S1
130SY-M11515S1
130SY-M15215S1
130SY-M11515S1-2
130SY-M15210S1
Power(KW)
0.85
1.3
1.8
2.4
1.8
1.6
Rated Current(A)
6.4
9.5
13
20
9.5
9.5
Rated Torque(V)
220
220
220
220
220
220
Rated Torque(N.m)
5.4
8.4
11.5
15.2
11.5
15.2
Max Torque(N.m)
13.8
23.3
28.7
38.2
19.5
27.36
Rated Speed(rpm)
1500
1500
1500
1500
1500
1000
Max Speed(rpm)
3000
3000
3000
3000
2200
1800
1) Are you a manufacturer or trade company?
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,we produce stepper motor,servo motor,motor drive and couplings, etc..
2)Where is your factory located? How can I visit there?
Our factory is located in Wenling Taizhou Zhejiang province,it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!

3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.

4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.

5) About warranty?
All our products provided 24months warranty!

6)How does your factory do regarding quality control?

"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems
from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.

7)Do you provide after-sale service?

Yes, of course. For the problem when using our products, we will guide you how to apply it in the machine and how to set the
parameters, etc.
