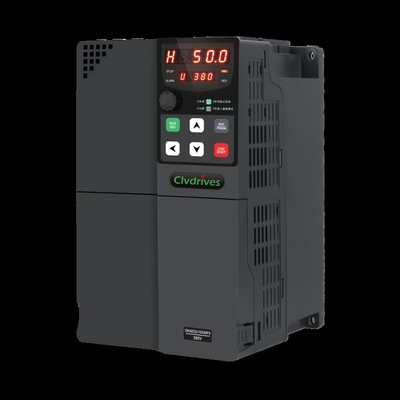

Hot sales Factory low price LCD Keypad 3 phase 380V variable frequency inverter 11KW VFD Drive

1 Set
MOQ
$198.00(1 - 99 Sets) $188.00(100 - 299 Sets) $179.00(>=300 Sets)
価格
Hot sales Factory low price LCD Keypad 3 phase 380V variable frequency inverter 11KW VFD Drive
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: V1000-V0040G3
Warranty: 3months-1year, 18 Months
Type: DC/AC Inverters
証明: CE
Size: 160mm X 171.5mm X 265mm
Customized: Yes
Control Mode: V/F,SVC
Rated Power: 11KW
Nominal Voltage: 380V
power phase number: 3
Input voltage: 380V 3 Phase
Output Frequency: 0-500Hz
Output Current: 25A
Overload Capacity: 150%- 60s,180%- 3s
Ambient Temperature: -10°C to +40°C
Application: pump and fan motor
Ingress Protection Ratings: IP20
WEIGHT: 6.8KG
OEM: SUPPORT
基本情報
証明: CE
Model Number: V1000-V0040G3
お支払配送条件
Packaging Details: The product will be packed in a single small carton or a plywood crate.
Supply Ability: 3000 Piece/Pieces per Month
製品の説明
Company Profile
Basic Technical Specifications
Single-phase power supply: 220V, 50/60Hz
Product ID
Adaptation motor
Rated Power
Rated Output Current(A)
Product Dimensions (mm)
V1000-V0004G1
0.4 KW      0.5HP
0.4KW 220V
2.5
86 X 131.5 X 170
V1000-V0007G1
0.75 KW       1HP
0.75KW 220V
4
86 X 131.5 X 170
V1000-V0015G1
1.5KW          2HP
1.5KW 220V
7
86 X 131.5 X 170
V1000-V0022G1
2.2KW          3HP
2.2KW 220V
10
96 X 151 X 180
Three-phase power supply: 380V, 50/60Hz
V1000-V0007G3
0.75 KW       1HP
0.75KW 380V
2.5
86 X 131.5 X 170
V1000-V0015G3
1.5KW          2HP
1.5KW 380V
3.7
86 X 131.5 X 170
V1000-V0022G3
2.2KW          3HP
2.2KW 380V
5.1
96 X 151 X 180
V1000-V0040G3
4KW             5HP
4KW 380V
8.5
96 X 151 X 180
V1000-V0055G3
5.5KW       7.5HP
5.5KW 380V
13
113 X 166.5X 221.6
V1000-V0075G3
7.5KW        10HP
7.5KW 380V
16
113 X 166.5X 221.6
V1000-V0110G3
11KW         15HP
11KW 380V
25
160 X 171.5X 265
V1000-V0150G3
15KW         20HP
15KW 380V
32
160 X 171.5X 265
V1000-V0185G3
18.5KW      25HP
18.5KW 380V
38
192 X 171.5X 302.5
V1000-V0220G3
22KW         30HP
22KW 380V
45
192 X 171.5X 302.5
V1000-V0300G3
30KW         40HP
30KW 380V
60
227 X 171.5X 348.5
V1000-V0370G3
37KW         50HP
37KW 380V
75
227 X 171.5X 348.5
Product Paramenters
7.5KW Inverter 380V customized high performance shenzhen factory lowest price converter DC to AC three phase input VFD
Model
V1000-V0110G3
Power range
3 phase AC 380V (-15%~+30%) 0.4~11KW
Maximum Frequency
Open Loop Vector Control(SVC)
V/F Control
Control Mode
Open Loop Vector Control(SVC)
V/F Control
Startup Torque
G Type: 0.5Hz/150%(SVC); 0Hz/180%(FVC);
P Type: 0.5Hz/100%
Overload Capability
G Type:150% rated current 60 seconds; 180% rated current 3 seconds;
P Type:120% rated current 60 seconds; 150% rated current 3 seconds
Communication Protocol
Modbus
Humidity
Less than 95%RH, without condensing
Vibration
Less than 5.9m/s (0.6g)
Details Images
Application
Packing & Delivery
We have cartons and wooden boxes, which are pwcked in cartons below 75KW and wooden boxes above 93KW. Thichened shockproof foam is filled inside to prevent damage to equipment in transit.
FAQ
Q 1: Are you trading company or manufacturer ?
A: We are factory.

Q 2: How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q 3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.

Q 4: What is your terms of payment ?
A:We accept T/T, L/C and CASH.

Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.

Q 6. Is there any discount ?
A. The discount will depend on the quantity you purchase.

Q 7. What is your supply capacity?
A. The week output of the factory exceeds 500 PCs.

Q 8.Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty for all the goods from us.

Q 9.Could M-driver provide technical support?
A.We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
