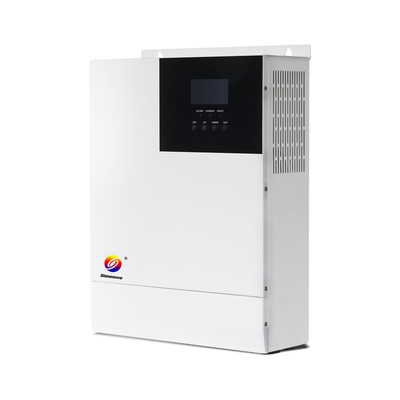

Name: SRNE 3000w 24V DC PV AC 100V 110V 120V High Frequency All In One 3KVA 3KW 60A MPPT Hybrid Charge Inverter Solar Charger 378*280*103 mm
Brand: SRNE 3000w 24V DC PV AC 100V 110V 120V High Frequency All In One 3KVA 3KW 60A MPPT Hybrid Charge Inverter Solar Charger 378*280*103 mm
SKU: HF2430U60-100
Rating: 4.9 (117 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: HF2430U60-100

Input Voltage: 24VDC 110V/120V AC

Output Voltage: 110V 120V AC

Output Current: According to load

Output Frequency: 60Hz

Output Type: Single

Size: 378*280*103 mm

Type: DC/AC Inverters

Inverter Efficiency: >92%

Certificate: CE ROSH cETL

Warranty: 1 YEAR

Weight: 6.2kgs

Product Name: All In One 3KVA 3KW 60A MPPT Hybrid Solar charge Inverter Charger

Rated Power: 3000W

Peak power: 6000W

Power factor: 1

Battery type: Lead Acid or Lithium

Max PV power: 1400W

Maximum PV array open circuit voltage: 100VDC

Communication: RS485/WiFi /GPRS/CAN/USB

MPPT Voltage Range: 30-85VDC

Battery Voltage Range: 20-33VDC

基本情報

証明: CE ROSH cETL

Model Number: HF2430U60-100

お支払配送条件

Packaging Details: 1 pc packed in 1 carton

Supply Ability: 3000 Piece/Pieces per Month

製品の説明

SRNE 3000w 24V DC PV 100V 110V 120V AC High Frequency

All In One 3KVA 3KW Hybrid Mppt 60A Solar charge Inverter Charger

Product Overview

HF series is new all-in-one hybrid solar chage inverter, which integrates solar energy storage & means charging energy stoarge and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard.

SRNE 3000w 24V DC PV 100V 110V 120V AC High Frequency

All In One 3KVA 3KW Hybrid Mppt 60A Solar charge Inverter Charger

Model	HF2430U60-100	HF4830U60	HF4835U80
AC mode
Rated input voltage	110/120VAC
Input voltage range	(90VAC-140VAC)±2%
Frequency	50Hz/60Hz(Auto detection)
Frequency Range	47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz）
Overloa/short circuit protection	Circuit breaker
Efficiency	>95%
Conversion time (bypass and inverter)	10ms(typical)
AC reverse protection	Available
Maximum bypass overload current	40A
Inverter mode
Output Voltage waveform	Pure sine wave
Rated output power(VA)	3000	3000	3500
Rated output power(W)	3000	3000	3500
Power factor	1
Rated output voltage(vac)	120VAC
Output voltage error	±5%
Output Frequency Range	50±0.3Hz/60±0.3Hz
Efficiency	>92%
Overload protection	(102% < load 110% ±10%): report error and turn offthe output after 5 minutes; (110% < load < 125%)±10%: report error and turn off theoutput after 10 seconds; (Load > 125% ±10%): report error and turn offthe output after 5 seconds;
Peak power	4500	6000VA	7000VA
Loaded motor capability	2HP	1HP	2HP
Output short circuit protection	Circuit breaker
Bypass breaker specifications	40A
Rated battery input voltage	24V(Minimum starting voltage 22V)
Battery voltage range	20.0VDC-33VDC Undervoltage alarm/shutdown voltage/overvoltage recovery ... settable on LCD screen
Power saving mode	Load ≤ 50W
AC charging
Battery tape	lead acid or lithium battery
Maximum charge current	40A
Charge current error	±5ADC
Charge voltage range	20-33VDC
Short circuit protection	Circuit breaker and blown fuse
Circuit breaker specifications	40A
Overcharge protection	Alarm and turn off charging after 1 minute
PV charging
Maximum PV open circuit voltage	100VDC
PV operating voltage range	30-100VDC
MPPT voltage range	30-85VDC
Battery voltage range	20-33VDC
Maximum output power	1400W
PV charging current range (can be set)	0-60A
Charging short circuit protection	Blown fuse
Wiring protection	Reverse polarity protection
Certified Speccification
Certification	CE(EN62109-1)
EMC certification level	EN61000,c2
Operating temperature range	-15℃ to 55℃
Storage temperature range	-25℃~60℃
Humidy range	5% to 95%(conformal coating protection)
Noise	≤60dB
Heat dissipation	forced air cooling, variable speed of fan
Communication interface	USB/RS485(bluetooth/ Wifi/ GPRS)/Dry node control
*Size(LWD)*	378280103mm
Weight (kg)	6.8

Performance characteristics

1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave. 2. Two output modes: mains bypass and inverter output; uninterrupted power supply. 3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. 4. Advanced MPPT technology with an efficiency of 99.9%. 5. With the charging requirement (voltage, current, mode) settings, and suitable for various types of energy storage batteries. 6. ON/OFF rocker switch for AC output control. 7. Power saving mode available to reduce no-load loss. 8. Intelligent variable speed fan to efficiently dissipate heat and extend system life. 9. Lithium battery activation design, allowing access of lead-acid battery and lithium battery. 10. 360 ° all-round protection with a number of protection functions. Such as overload,short circuit and over current. 11. Supply of a variety of user-friendly communication modules, such as RS485(GPRS,WiFi), CAN, USB etc.,

and suitable for computer, mobile phones, Internet monitoring as well as remoteoperations. 12. Lithium battey can be activated by both mains and PV

SRNE 3000w 24V DC PV 100V 110V 120V AC High Frequency

All In One 3KVA 3KW Hybrid Mppt 60A Solar charge Inverter Charger

SRNE 3000w 24V DC PV 100V 110V 120V AC High Frequency

All In One 3KVA 3KW Hybrid Mppt 60A Solar charge Inverter Charger

SRNE 3000w 24V DC PV AC 100V 110V 120V High Frequency All In One 3KVA 3KW 60A MPPT Hybrid Charge Inverter Solar Charger 378280103 mm

Performance characteristics
