ホーム /製品/モーター周波数インバーター/Solar Water Pump Solar Water Pump 380V 3 Phase Gd100-PV Solar Water Pump Frequency Inverter With MPPT For Irrigation 90kw AC VFD Drive

Solar Water Pump Solar Water Pump 380V 3 Phase Gd100-PV Solar Water Pump Frequency Inverter With MPPT For Irrigation 90kw AC VFD Drive

10 Pieces
MOQ
$1,150.00(10 - 99 Pieces) $1,145.00(100 - 999 Pieces) $1,140.00(>=1000 Pieces)
価格
Solar Water Pump Solar Water Pump 380V 3 Phase Gd100-PV Solar Water Pump Frequency Inverter With MPPT For Irrigation 90kw AC VFD Drive
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: LX100-090G-4-PV
Type: DC/AC Inverters
Output Type: Triple
Output Current: 180A, 180A
Output Frequency: 0-400HZ
Certificate: CE ISO9001
Application: Solar Water Pump
Keyword: VFD AC Drive
Control mode: Vector Control
Warranty: 18 Months
OEM: OEM support
Efficiency: 99.9%
Color: Black or Customized
Input Frequency: 50/60Hz
Frequency Range: 0-400Hz
基本情報
証明: CE ISO9001
Model Number: LX100-090G-4-PV
お支払配送条件
Packaging Details: PVC Bag + Sponge + Carton+ Wood Box For Free Fumigation
Supply Ability: 50000 Piece/Pieces per Month
製品の説明
Product Description

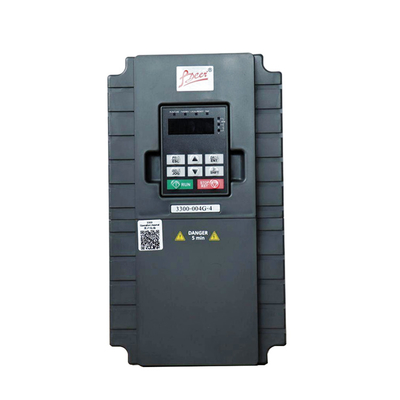

LX100-PV series Solar Pumping Inverter
LX100-PV series inverter is applied to PV pump system with MPPT fuction, replacing water storage with electric storage and
needs no battery modules. LX100-PV Variable Frequency Drive contains both V/F and sensorless vector control. It adopts newly designed
platform to provide excellent motor drive performance, high performance product aimed at the general inverter market.
Specification
VFD Model
Input Voltage
Rated Output Power(KW)
Rated Input Current(A)
Rated Output Current(A)
Applicable Motor(KW)
GD100-0R4G-S2-PV
Single Phase 220V
0.4
6.5
2.5
0.4
GD100-0R7G-S2-PV
0.75
9.3
4.2
0.75
GD100-1R5G-S2-PV
1.5
15.7
7.5
1.5
GD100-2R2G-S2-PV
2.2
24
10
2.2
GD100-0R7G-4-PV
Three Phase 380V
0.75
3.4
2.5
0.75
GD100-1R5G-4-PV
1.5
5
4.2
1.5
GD100-2R2G-4-PV
2.2
5.8
5.5
2.2
GD100-004G-4-PV
4
13.5
9.5
4
GD100-5R5G-4-PV
5.5
19.5
14
5.5
GD100-7R5G-4-PV
7.5
25
18.5
7.5
GD100-011G-4-PV
11
32
25
11
GD100-015G-4-PV
15
40
32
15
GD100-018G-4-PV
18.5
47
38
18.5
GD100-022G-4-PV
22
51
45
22
GD100-030G-4-PV
30
70
60
30
GD100-037G-4-PV
37
80
75
37
GD100-045G-4-PV
45
94
92
45
GD100-055G-4-PV
55
128
115
55
GD100-075G-4-PV
75
160
150
75
GD100-090G-4-PV
90
190
180
90
GD100-110G-4-PV
110
225
215
110
Function
Specification
Input
Input Voltage(V)
AC 3PH 380V(-15%)~40V(+10%)
Input Frequency(Hz)
47~63Hz
Output
Output Voltage(V)
0~Input Voltage

Output Frequency(Hz)
0~400Hz
Output Power(KW)
0.4~110KW
Control Mode
SVPWM, Sensorless Vector Control
Motor Type
Asynchronous Motor
Speed Ratio
1:100(SVC)
Technical Control Feature
Speed Control Accuracy
±0.2%(Sensorless Vector Control)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
